HSR-IPM High Speed Insulation Rolling Shutter Door
Thermal insulation, safe and efficient, reduce air convection in the process of loading and unloading of the cold storage, reduce energy consumption; Used for cold chain, food, medicine and other constant temperature or low temperature storage.
Technical description:
●Door size:
Minimum size W2000/H2000
Maximum size W3000/H3000
●Door opening/closing speed:
Minimum closing speed 0.8m/s
Maximum opening speed 1.5m/s
●Door panel material:
0.8mm PVC curtain/ yellow, orange, blue optional
●Combined door frame:
optional
●Motor cover:
optional
●Scroll cover:
optional
●Installation position:
Outside the cold storage
●Open configuration (optional) :
Remote control/3-key button/ geomagnetic/radar/pull-cord switch
●Service life:
More than 1 million times
●Operating ambient temperature:
- 10 ℃ ~ + 40 ℃
Product features:
PVC thermal high speed door is designed with the insulated curtain, which has certain insulation function. It can be used in a low-temperature environment to reduce energy loss, preserve heat, prevent fog and reduce air condensation when the air cools.
The innovative soft bottom edge design with anti-collision reset function can avoid accidents, which greatly reduces the door curtain damage caused by accidental collision, and reduces the mainte-nance cost.
It is used in combination with ordinary translational cold-storage doors in low temperature environment requir-ing frequent and quick opening.

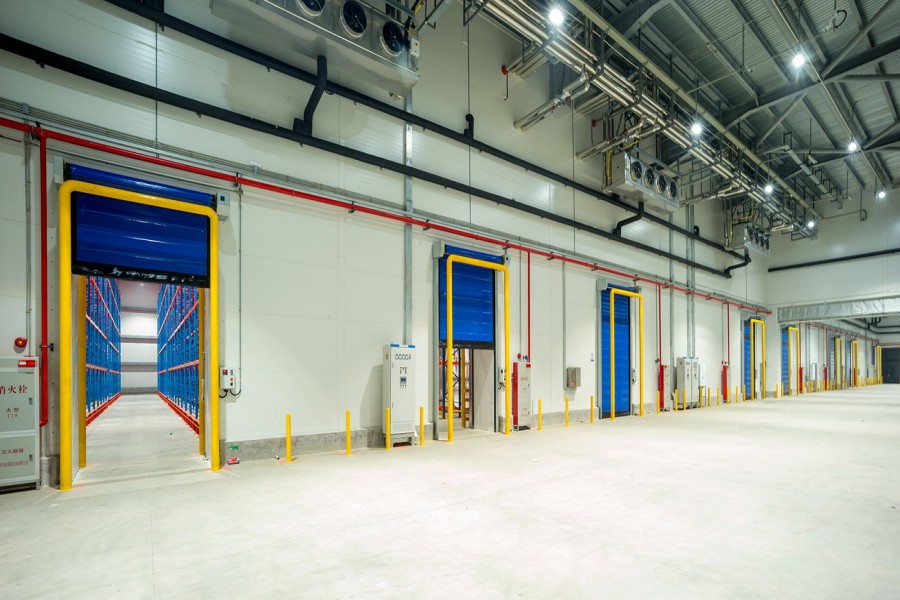

Typical application industries: food, medicine, cold storage, etc.
